Bent Tempered Glass

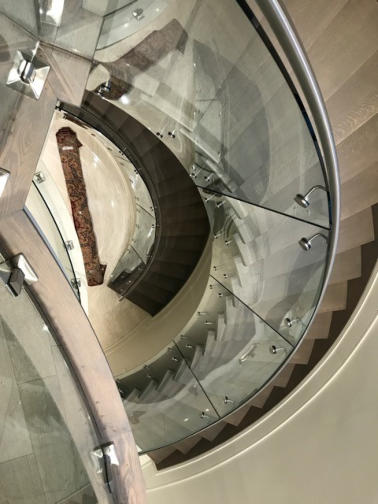

12mm Bent Tempered Railing - Installed on Bridle Path Toronto.
Bent Tempered Glass Capabilities: Thickness range: 4mm to 12mm Maximum size of glass: 2440 mm (96”) high  x  1700 mm (66.9”) - girth (Arc length) Wide Minimum size of glass: 300 mm (11.8”) high  x  600 mm (23.6”) - girth (Arc length) Wide Minimum Radius o Glass thickness 5,6 mm  --860 mm or 33.85" Minimum Radius o Glass thickness 4,8,10 mm  - 1000 mm or 39.3" Minimum Radius o Glass thickness 12 mm  - 1200 mm or 47.25" Minimum Radius Maximum Bending Depth (Rise) 400 mm 15.75"

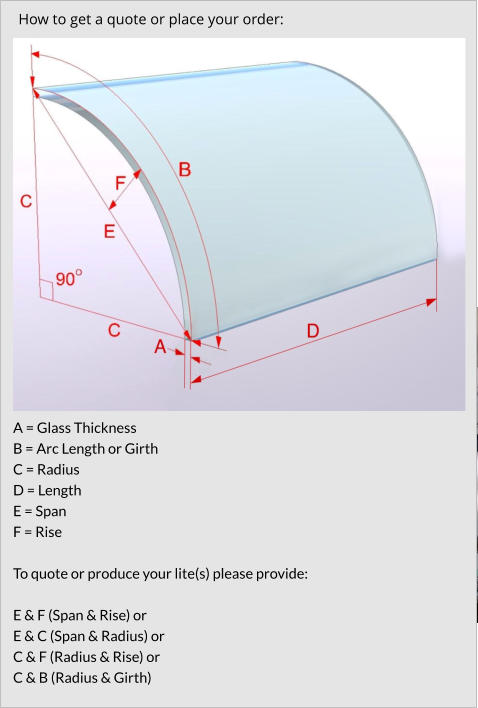

A = Glass Thickness B = Arc Length or Girth C = Radius D = Length E = Span F = Rise  To quote or produce your lite(s) please provide:  E & F (Span & Rise) or E & C (Span & Radius) or C & F (Radius & Rise) or C & B (Radius & Girth)  How to get a quote or place your order:

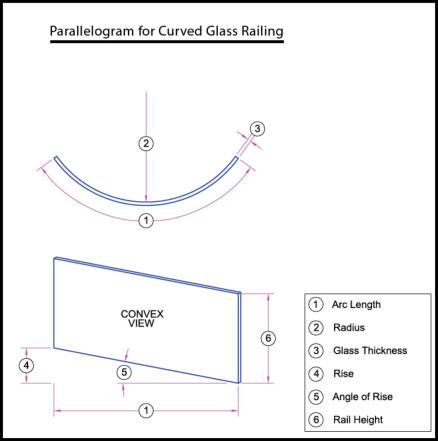

Dimensions Needed for Curved Railings

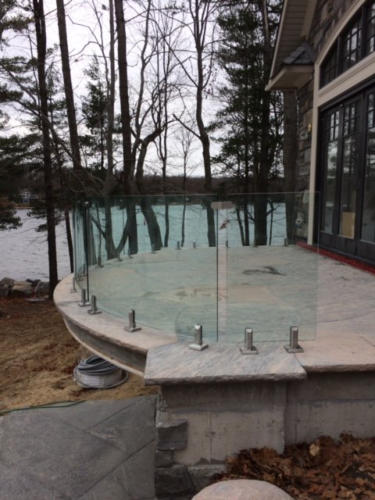

12mm Bent Tempered Railing - Muskoka Exterior Balcony
Bent Tempered IG Units
